12PSB-BFB 2-12 cylinders BOSCH diesel fuel injection pump test bench

Name: 12PSBBFB 212 cylinders BOSCH diesel fuel injection pump test bench
Brand: BFchina
Price: 3800 USD

Quality 12PSB-BFB 2-12 cylinders BOSCH diesel fuel injection pump test bench wholesale

Brand Name : BFchina

Model Number : 12PSB-BFB

Certification : CE/ISO

Place of Origin : Shandong, China

MOQ : 1 set

Price : USD3800-5000/set

Payment Terms : L/C, T/T, Western Union,

Supply Ability : 150sets/year

Delivery Time : 15 days after your deposite

Packaging Details : Packed by wooden box package or as your requirements

Color : Green or Blue

Launguage : English,Chinese

Function : Diesel injection pump testing

Voltage : 220V/380V

Motor Power : 7.5KW/11KW/15KW/18KW/22KW

MOQ : 1 set

ODM/OEM : Support

Product Name : diesel fuel injection pump test bench

Contact Now

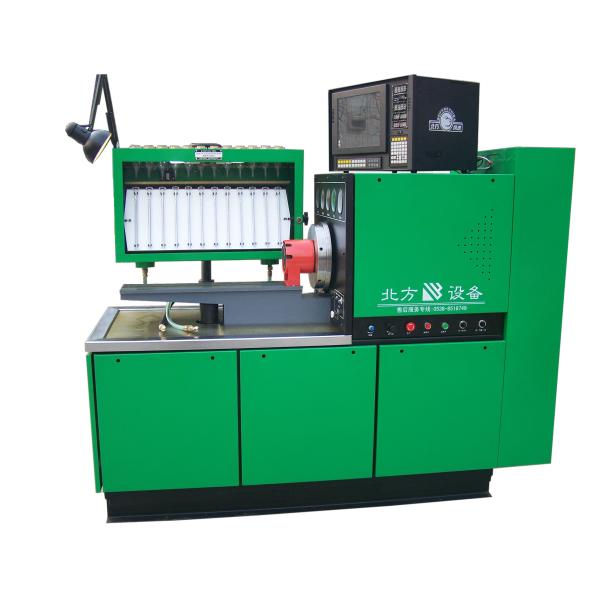

12PSB-BFB 2-12 cylinders BOSCH diesel fuel injection pump test bench

Machine Details

Our 12PSBB-BFB diesel fuel injection pump test bench is our best seller model, which is used to test mechanical pumps such as inline pumps and distributor pumps.
It adopts CRT screen display and LED digital display control systems.

12PSB-BFB 2-12 cylinders BOSCH diesel fuel injection pump test bench

1. Features and Advantages

12PSB-BFB 2-12 cylinders BOSCH diesel fuel injection pump test bench
>>> Three system languages: Chinese, English and Russian (other languages can choose as customer's requirements).
>>> Main engine frequency conversion, manual and automatic two operating modes.
>>> Automatic mode can process multi- gears speed preset.
>>> Automatic oil measuring and counting system.
>>> Has short-circuit protection feature
>>> Two sets of air supply adjustment knobs on both sides,easy operation
>>> Automatic oil measuring plate (optional install).
2. Functions

>>> Test each cylinder's oil supply quantity under different rotate speed.
>>> Check each cylinder's injection timing under static state.
>>> Check the performance of mechanical governor.
>>> Test the electromagnetic valve of distributor pump.
>>> Test the tightness of injection pump.
>>> Measure the pump body internal pressure and oil return pressure of distributor pump.
>>> Check the performance of pressure equalizer, pneumatic governor.
>>> Equipped with DC.1 2V/24V power supply, used for magnetic valve's driving and testing.

3. Technical Parameters

12PSB-BFB 2-12 cylinders BOSCH diesel fuel injection pump test bench

Technical Items	Parameters
Voltage	380V/22V
Rated output power	7.5KW/11KW/15KW/ 18.5KW/22KW
Speed	0--4000r/min
Oil supply	10L/min , 20L/min
Oil supply high pressure	0~3.5Mpa
Oil supply low pressure	0~0.35Mpa
Air supply pressure range	0~0.15Mpa
DC power	12V/24V
Fuel oil temperature	40 ± 2 ℃
Size	2150 × 750× 1850mm
Weight	910kg

Operating videos

BF1178 common rail injector and pump test bench
https://www.youtube.com/watch?v=0ZlHcqYqtMk
BF1176 common rail injector test bench
https://www.youtube.com/watch?v=88KhnEcvTDs&feature=youtu.be
CRI common rail injector repair instruction
https://www.youtube.com/watch?v=lzLWMoYlMQk

4. Optional Accessories and Tools

5. Applications

>>> Vehicles: Automobiles, tractors, agriculture machines, dynamos, engineering machinery

>>> Sea Transportation

>>> Scientific research of teaching

>>> National defense
12PSB-BFB 2-12 cylinders BOSCH diesel fuel injection pump test bench

After-sale service

1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. Spare parts replacement and repair service provided.

Packaging & Shipping

>>> Packaging : wooden case with water-proof membrane
>>> Delivery: within 15 days after receiving the deposit
12PSB-BFB 2-12 cylinders BOSCH diesel fuel injection pump test bench
